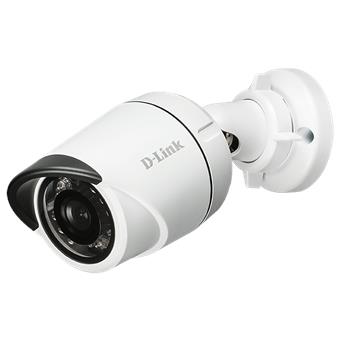

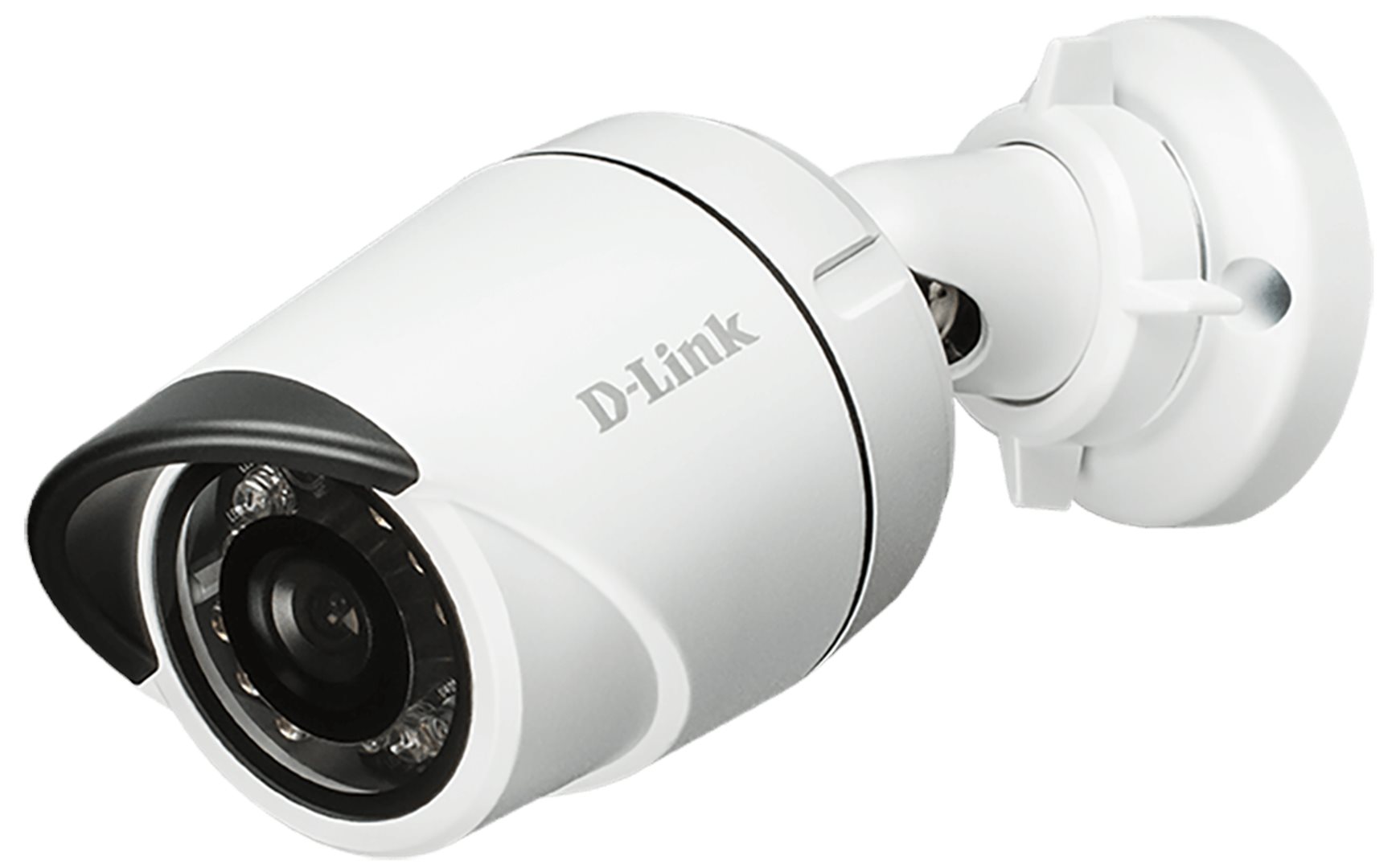

D-Link DCS-4701E WDR kamera 2Mpix, POE

D-Link DCS-4701E WDR kamera 2Mpix, POE

OVERVIEW

The Vigilance HD Outdoor PoE Mini Bullet Camera is a professional, full featured HD camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Incorporating LowLight+ the camera can see in colour, even in extremely low light conditions, whilst the Integrated IR illuminator allows the camera to see up to 30 metres, even in complete darkness. The camera’s IP66 (weather-proof) housing is specifically designed to withstand all adverse weather conditions.

• HD 720p, 30 fps
• LowLight+
• Day and night with ICR filter and IR LED
• 30m night vision
• Wide Dynamic Range
• 3D Noise Reduction
• Supports Power over Ethernet
• IP66 outdoor certified

SPECIFICATIONS

HARDWARE
Indoor/Outdoor

• Indoor and outdoor IP66

Image Sensor

• 1/2,7” 2-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

• 1280 x 720 (16:9)
• 960 x 720 (other)

Maximum Frame Rate

• Up to 30 fps

Lens

• Fixed 3,6 mm, F1.8

Minimum Illumination (Lux)

• 0.1 lux (color)
• 0.05 lux (B/W)
• 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

• Yes

IR Built-in

• 30 m

Wide Dynamic Range (WDR)

• Yes

3D Noise Reduction

• Yes

LowLight+

• Yes

Angle Of View (H/V/D)

• 96° / 50° / 104°

Privacy Masks

• 3 zones

Wired Connection

• Fast Ethernet (10BASE-T, 100BASE-TX)
• Power over Ethernet (802.3af PoE)

SOFTWARE
Video Format

• H.264
• MJPEG
• H.265

Multi-Stream

• Yes

ONVIF

• Yes

Digital Zoom

• 10x

Motion Detection

• Yes

Event Recording

• Yes

E-Mail Notification

• Yes

Recording to NAS

• Yes

IPv6 Support

• Yes

OTHERS
Dimensions

• ⌀ 65 × 164mm

Operating Temperature

• -30 ~ 50°C

Operating Humidity

• 20 ~ 80% RH (non-condensing)

Optional Power Input

• DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)

Safety

• CE (Class A)
• CE LVD
• FCC (Class A)
• C-Tick
